| Nazwa marki: | ADVS |
| Numer modelu: | HE62 |
| MOQ: | 1 zestaw |
| Cena £: | USD 34000-200000 |
| Warunki płatności: | T/T |

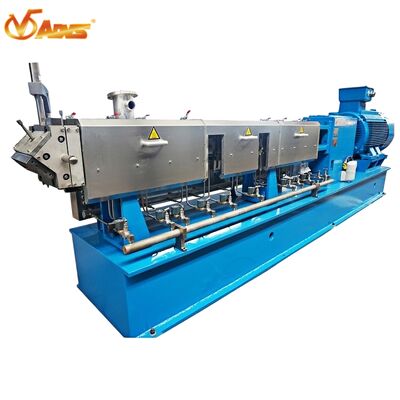

HE62 Series Twin-Screw Granulating Extruder ADVS High Standard
Basic Infromation :
| Parameter | Value |
|---|---|
| Model Number | HE62 |
| Product Type | Granulating Twin-Screw Extruder |
| Processed Plastic Material | ABS |
| Feeding Mode | Multiple Feeding |
| Assembly Structure | Integral Type |
| Screw Configuration | Twin-Screw, Full Intermeshing, Deep Screw Channel |
| Exhaust System | Equipped with exhaust function |
| Control System | Automatic and computerized |
| Trademark | ADVS |
| Screw Diameter | 43 mm |
| Transport Package | Heavy-duty wooden crates |
| Place of Origin | Sichuan, China |
Technical datas of HE series high standard extruder :
| Model Number | HE27 | HE43 | HE51 | HE58 | HE62 | HE70 | HE77 | HE92 |
|---|---|---|---|---|---|---|---|---|
| Screw Diameter (mm) | 27 | 43 | 51 | 58 | 61.5 | 70 | 77 | 92 |
| L/D Ratio | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| Main Drive Motor Power (kW) | 37 | 132 | 250 | 355 | 400 | 600 | 650 | 1000 |
| Maximum Screw Speed (rpm) | 1500 | 1200 | 1200 | 1200 | 1200 | 1200 | 1000 | 900 |
| Specific Torque (Nm/cm³) | 11.3 | 13.9 | 13.9 | 13.9 | 13.9 | 13.9 | 13.9 | 13.9 |
| Center Distance (mm) | 22.5 | 35.5 | 42 | 48 | 50 | 58.5 | 63.5 | 76 |
| OD/ID Ratio | 1.54 | 1.55 | 1.55 | 1.55 | 1.55 | 1.55 | 1.55 | 1.55 |
| Nominal Output Range (kg/h) | 20 to 120 | 220 to 500 | 700 to 1200 | 1100 to 1500 | 1300 to 1800 | 1700 to 3000 | 2400 to 4000 | 3600 to 6600 |
